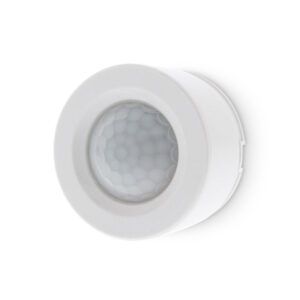

Wireless PIR and Light Sensor
SKU: E9T-OBP
ILLUMRA Wireless PIR and Light Sensor Battery-Powered Motion & Light Sensor with Flexible Mounting
Versatile battery-powered occupancy sensor with integrated daylight harvesting. Mount on ceiling, wall, or free-standing — 5-year battery life from a single CR123A. Perfect for retrofits where hardwired sensors aren't practical.
Features:
- PIR motion detection (20 ft diameter ceiling / 16 ft radius wall)
- 0-1000 lux light sensor with adjustable threshold
- Selectable motion or vacancy sensing modes
- 5-year battery life (CR123A)
- 90 ft wireless range (902 MHz)
- Low battery indicator
Ideal For: Retrofit projects, classrooms, offices, conference rooms, residential spaces
Compatible With: ILLUMRA fixture controllers, area controllers, dimmers, and BACnet gateways
Looking for battery-free? See our Wall Mounted Occupancy Sensor or High Bay Ceiling Sensor.
Key Features
Categories:Wireless Sensors, Occupancy Sensor
Voltage:N/A
Frequency:902 MHz
Protocols:902 MHz Protocol
Specifications
| Frequency | 902 MHz |
| Detection Distance | Ceiling Mount: 20’dia@8’ ceiling height Wall, Desk top: 16’rad. X 120° |
| Radio Range | 90’ max @ +3dbM |
| Power Supply | (1) CR123A 3V Battery, 5yr Life |
| Ambient Light | 0-1000 Lux potentiometer |
| Output Channels | Stand Alone - Direct control of devices Gateway - Notifies GW of detection |
| Dimensions | 2.56” x 2.56” x 1.5” [65x65x39mm] |
| Ambient Operating Temperature | 14°F to 113°F [-10°C to +45°C] |
| Radio Certification | FCC |
