Fan-Light Wireless Switch Kit
SKU: E9K-BF12WH
ILLUMRA Fan-Light Wireless Switch Kit Dual Control Solution for Fans and Lights
Control a ceiling fan and light independently from one self-powered dual rocker switch — no batteries, no complex wiring. Kit includes switch and controllers, factory-paired and ready to install in minutes.
Kit Includes:
- Battery-free dual rocker switch (top = fan, bottom = light)
- Two controllers (one per load)
- Factory-paired — ready to install immediately
Features:
- Independent control of two loads from one switch location
- No switch wiring required — mount switch anywhere
- Multiple kits work in same area without interference
Kit Options:
- 5A Kit (E9K-BF12WH): Standard ceiling fans and lights
- 20A Kit (E9K-I12WH-RUV): Larger fans or multiple fixtures

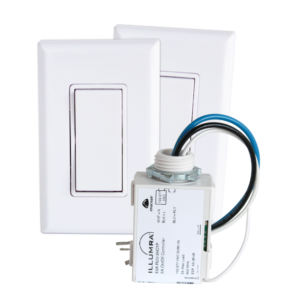

- 3-Way Kit (E9K-BF22WH): Control from two locations (includes 2 switches + 2 controllers)
Ideal For: Ceiling fan/light combos, garage door and light, bedroom fan and light, patio fan and light
Key Features
Categories:Wireless Light Switch Kits, Wireless Light Switch
Voltage:120V
Frequency:902 MHz
Protocols:902 MHz Protocol, Wiring Required, Wireless
Select From Available Colors
5A Kit
E9K-BF12WH
20A Kit
E9K-I12WH-RUV
3-Way Kit
E9K-BF22WH
Specifications
| Range | 50-150 feet (typical) |
| Frequency | 902 MHz EnOcean® Protocol |
| Switch Power Supply | Micro-generator when switch is pressed |
| Controller Power Supply | 100-277 VAC 50/60 Hz |
| Controller Max Load | 5A Kit Max Load 20A Kit Max Load 70A Max Inrush Current 1/4HP |
| Switch Dimensions | 2.75 x 4.5 x 0.62 inches |
| Controller Dimensions | 2.11(W) x 1.73(H) x 1.09(D) inches |
| Operating Temperature | -+32º to +122ºF (0 to +50ºC) |
| Agency Compliance | FCC (United States): SZV-TCM210U I.C. (Canada): 5713A-TCM210U |
| Addressing | Factory set unique ID (1 of 4 billion) |
Resources
Downloads
Wiring Diagrams
