Basic Wireless Switch Kit
SKU: E9K-B11WH

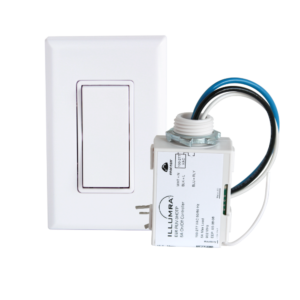

ILLUMRA Basic Wireless Switch Kit Complete Battery-Free Lighting Control — Ready to Install
Everything you need in one box: self-powered wireless switch + 5A controller, factory-paired and ready to go. Add a wall switch anywhere — no batteries, no wiring, no electrician needed for the switch.
Kit Includes:
- Battery-free kinetic switch (generates power from each press)
- 5A on/off controller (installs behind fixture or in junction box)
- Factory-paired — works out of the box
Features:
- No switch wiring — mount the switch anywhere
- Relocate existing switches without rewiring
- Convert pull-chain fixtures to wall switch control
- Multiple kits work in the same area without interference
Ideal For: Retrofit projects, pull-chain conversions, garages, closets, basements, anywhere wiring is impractical
Key Features
Categories:Wireless Light Switch Kits, Controllers, Wireless Light Switch
Voltage:120V
Frequency:902 MHz
Protocols:902 MHz Protocol, Bluetooth 2.4 GHz, 2.4 GHz (ZigBee channels 11-26)
Specifications
| Range | 50-150 feet (typical) |
| Frequency | 902 MHz EnOcean® Protocol |
| Switch Function | Top: ON – Bottom: OFF |
| Switch Power Supply | Micro-generator when switch is pressed |
| Controller Power Supply | 100-277 VAC 50/60 Hz |
| Controller Max Load | 5A all loads, Induction, Fluorescent, LED, Other 70A Max Inrush Current 1/4HP |
| Switch Dimensions | 2.75 x 4.5 x 0.62 inches |
| Controller Dimensions | 2.61 x 1.73 x 1.09 inches |
| Operating Temperature | -+32º to +122ºF (0 to +50ºC) |
| Agency Compliance | FCC (United States): SZV-PTM210U I.C. (Canada): 5713A-PTM210U |
| Addressing | Factory set unique ID (1 of 4 billion) |
Resources
Downloads
Wiring Diagrams
