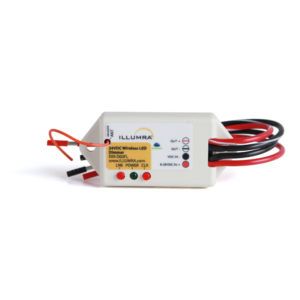

Constant Voltage PWM Dimming Controller
SKU: E9X-D02FL
ILLUMRA Constant Voltage PWM Dimming Controller Ultra-Smooth LED Dimming Performance
Advanced PWM dimming controller with 65,000 dimming steps — eliminates the choppy low-level dimming common in traditional LED dimmers. Ultra-compact design (1/2 to 1/4 the size of standard dimmers) fits in tight spaces.
Features:
- 65,000-step PWM dimming (flicker-free at all levels)
- Constant voltage output: 8-28VDC, 5A
- Ultra-compact for tight installations
Available Versions:
- Wireless (E9X-D02FL): Works with ILLUMRA self-powered switches, wireless sensors, and wired switches
- Wired (NWO-D02FP): Responds to wired sensors and wired control switches
Ideal For: Cove lighting, under-cabinet LEDs, accent lighting, retail displays, museum lighting, hospitality
Key Features
Categories:Controllers
Voltage:120V
Frequency:902 MHz
Protocols:Wiring Required, 902 MHz Protocol, Wireless
Select From Available Colors
Wired Version
NWO-DO2FP
Wireless Version
E9X-D02FL
Specifications
| Range | E9X-D02FL - 50-150 feet (typical) | NWO-D02FP - N/A |
| Frequency | E9X-D02FL - 902 MHz EnOcean Protocol | NWO-D02FP - N/A |
| Power Supply Input Rating | 8-28VDC – 40mA (not incl. load current) |
| Output Rating | Constant voltage 0-28VDC (5A max.) |
| Input Rating | 902MHz RF Transmitter Control | 0-10V Control |
| Output Channels | 1 output — PWM dimming |
| Memory | E9X-D02FL - Stores up to 25 unique wireless transmitter IDs in memory | NWO-D02FP - N/A |
| Operating Temperature | +13° to +140°F (-25° to +60°C) |
| Storage Temperature | -40° to +140°F (-40° to +60°C) |
| Dimensions | 2.88"(W) x 1.30"(H) x 0.67"(D) (7.32cm x 3.30cm x 1.70cm) |
| Agency Compliance | E9X-D02FL - FCC (United States): SZV-TCM2XXC IC (Canada): 5713A-TCM2XXC | NWO-D02FP - N/A |
