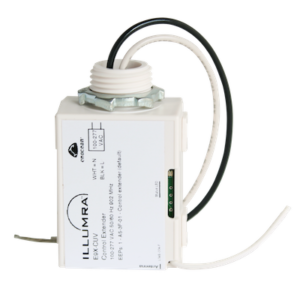

CUV Control Transmitter
SKU: E9X-CUV
ILLUMRA CUV Control Transmitter Wireless Circuit Bridge for Multi-Zone Control
Wireless transmitter that monitors a line voltage circuit and broadcasts its status to multiple ILLUMRA controllers — create master switching across zones without complex wiring.
Features:
- Line voltage circuit monitoring (100-277 VAC)
- Broadcasts to unlimited ILLUMRA controllers in range
- Master on/off control from a single circuit
- Multi-zone synchronized switching
- 50-100 ft radio range
Ideal For: Commercial facilities, warehouses, retail, offices — any building requiring master switching or synchronized control across multiple zones
Key Features
Categories:Controllers
Voltage:120V
Frequency:902 MHz
Protocols:902 MHz Protocol
Specifications
| Radio Range | 50-100 ft (17-50m) |
| Supply Voltage | 100-277 VAC 50 /60 Hz 0.5W standby power |
| Frequency | 902 MHz |
| Dimensions | 2.11 x 1.73 x 1.09 inches (54 x 44 x 28 mm) |
| Operating Temperature | +32° to +122°F (0 to +50°C) |
| Storage Temperature | -4° to +176°F (-20° to +80°C) |
| Radio Certification | UL60730 (Safety) | UL2043 (plenum) | CSA c22.2#14-05 (safety) | CE – IEC60730 | FCC: SZV-STM300U | IC: 5713A-STM300U |
