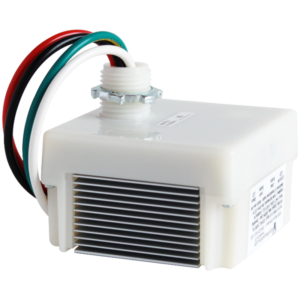

600 Watt Phase Cut Dimming Controller
SKU: E9X-ER6CD
ILLUMRA 600W Phase Cut Dimming Controller Phase-Adaptive Wireless Dimming with Daylight Harvesting
Intelligent 600-watt dimming controller that automatically detects load type and provides reverse or forward phase dimming — no manual configuration required. Built-in daylight harvesting and wireless repeater functionality.
Features:
- Phase-adaptive dimming (auto-detects load type)
- 600W capacity: tungsten, 2-wire fluorescent, LED, ELV transformers
- Built-in daylight harvesting (photo inhibit)
- Doubles as wireless signal repeater
- BACnet integration for centralized control
- 120V or 277V versions available
Compliance: Title 24, ASHRAE 90.1
Ideal For: Hybrid lighting retrofits, conference rooms, offices, classrooms, retail — especially mixed load types
Key Features
Categories:Controllers
Voltage:120V
Frequency:902 MHz
Protocols:902 MHz Protocol
Select From Available Colors
277V Version
E9X-ER6CD-277
120V Version
E9X-ER6CD
Specifications
| Frequency | 902 MHz |
| Transmission Range | 50-150 feet (typical) |
| Power Supply | 120 VAC or 277 VAC @ 50/60Hz |
| Compatible Loads | Min. 1 W load – Max. 600 W load • Tungsten • 2-wire Fluorescent • Line voltage LED • Electric low voltage transformer (120V only) |

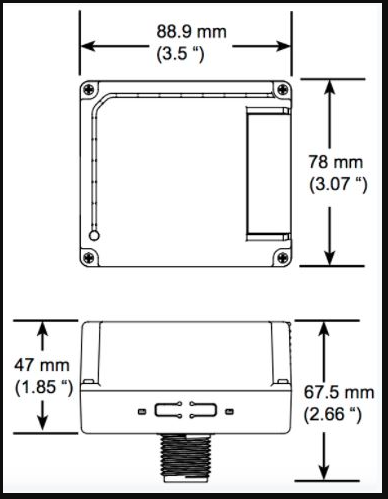

| Dimensions | 3.5 x 3.1 x 1.9 inches (89 x 78 x 47 mm) |
| Operating Temperature | CSA: 32ºF to 104ºF (0ºC to 40ºC) UL: 32ºF to 122ºF (0ºC to 50º C) |
| Relative Humidity | 5% to 95% RH (non-condensing) |
| Agency Compliance | ETL, UL, FCC, & IC compliant |
| EEP (EnOcean Equipment Profile) | F6-02-02 (Light and Blinds Control - US/Canada application) A5-06-02 (Light Sensor [range 0 - 1024 lux ]) A5-07-01 (Occupancy Sensor) A5-38-08 (Central command, switching, dimming and set point) |
Resources
Downloads
Wiring Diagrams
