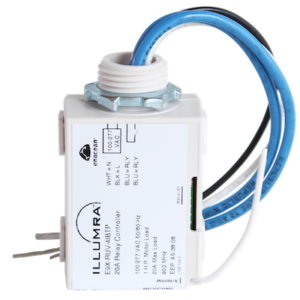

20A On/Off Area Controller
SKU: E9X-RUV-4IBTP
ILLUMRA 20A On/Off Area Controller Wireless High-Current Lighting & Load Control
Professional-grade 20-amp controller switches full circuit loads from wireless switches, sensors, and building systems — no control wiring required. Solid-state arc suppression eliminates relay contact arcing for extended lifespan.
Features:
- 20-amp switching (LEDs, plug loads, motors up to 1 HP)
- Wireless control via 902 MHz (EnOcean)
- Solid-state arc suppression technology
- 100-277 VAC universal voltage
- 50-150 ft wireless range
- Title 24 & ASHRAE 90.1 compliant
Ideal For: LED lighting, plug load control, motor control, conference rooms, classrooms, warehouses, offices, retail
Area Controller vs. Fixture Controller: Use this for full circuit control. For individual fixture control, see the 5A Fixture Controller.
Key Features
Categories:Controllers
Voltage:120V
Frequency:902 MHz
Protocols:902 MHz Protocol
Specifications
| Frequency | 902 MHz |
| Radio Range | 50-150 ft (17-50m) |
| Supply Voltage | 100-277 VAC 50 /60 Hz 20 Amps all loads, Induction, Fluorescent, LED, Other |
| Max Load | 1 HP Motor Loads 160A Max Inrush Current |
| Dimensions | 2.11 x 1.73 x 1.09 inches (54 x 44 x 28 mm) |
| Operating Temperature | +32° to +122°F (0 to +50°C) |
| Storage Temperature | -4° to +176°F (-20° to +80°C) |
| Radio Certification | UL 60730 (safety) | UL 2043 (plenum) | CSA c22.2#14005 (safety) | CE – IEC 60730 |
