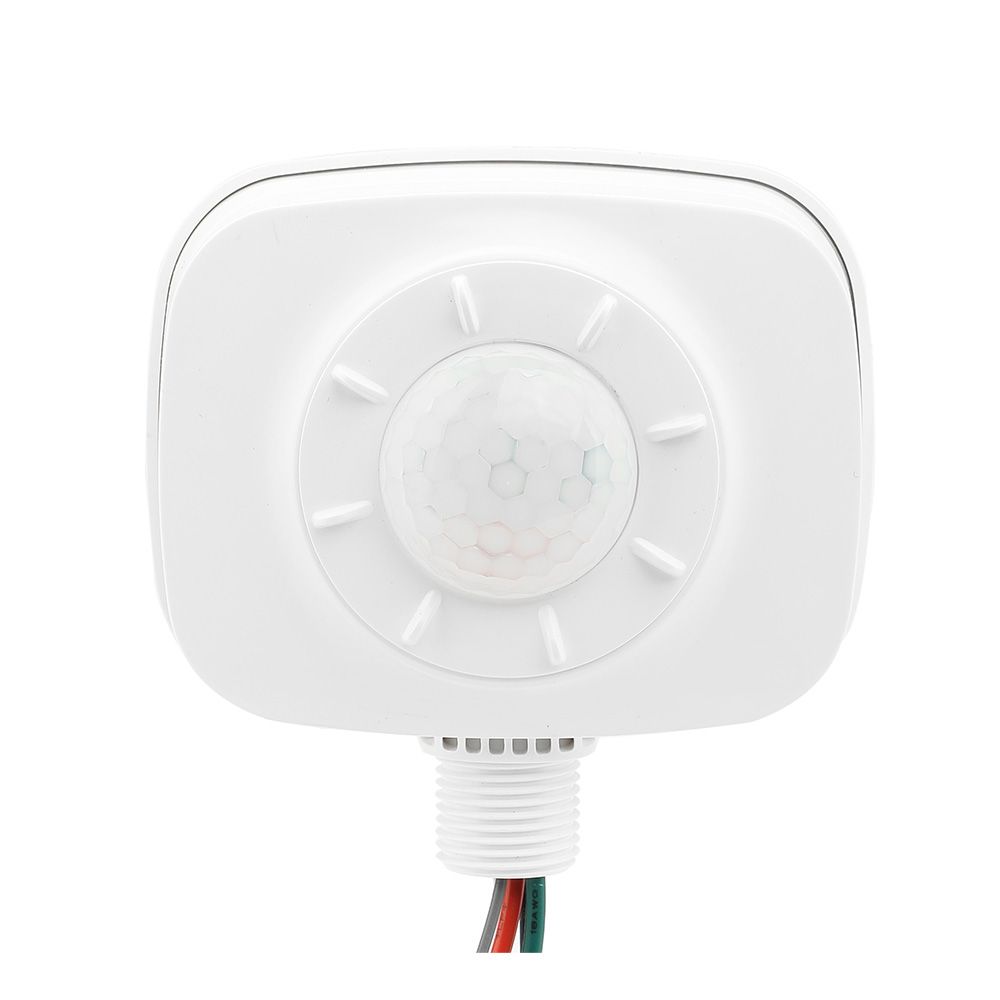

Bluetooth Mesh Motion & Light Fixture Sensor
SKU: BTX-DUV-OCC
LLUMRA Bluetooth Mesh Power Pack Smart Lighting Control System
Bluetooth mesh controller with iOS/Android app control for dimming, scheduling, and zone grouping. Works seamlessly with ILLUMRA wireless Bluetooth switches for wall-mounted control without additional wiring.
Features:
- Mobile app control (iOS/Android)
- Bluetooth mesh networking — no gateway required
- Grouping, scheduling, and scene programming
- 0-10V dimming with high-end trim
- Optional occupancy sensor integration
Available Models:
- BTX-DUV-10VFX (Single Channel): Controls one lighting zone with 0-10V dimming
- BTX-DUV-CCTFX (Dual Channel): Controls two zones with CCT tunable white capability
Ideal For: Classrooms, conference rooms, offices, retail spaces
Key Features
Categories:Bluetooth Controllers
Voltage:120V
Frequency:Bluetooth 2.4 GHz
Protocols:Bluetooth 2.4 GHz
Specifications
| Supply Voltage | 120, 240, 277 VAC 50/60 Hz |
| Max Load | 6 Amps, 600W for LED driver only 0-10V sink 20mA |
| Dimensions | 3.91’’ x 4.03’’ x 2.07’’ |
| Mounting Height | 8-45 ft (2.5 - 15 m) |
| Operating Temperature | -40 to ~115 ºF (-40 to +45ºC) |
| Approvals | UL8750 Safety FCC Part 15 IP65 - Dry or Damp Location Surge Protection L-N 1KV, L&N- PE 2KV |
| Ambient Light Level Range | 30-2500 Lux |
